L22520-1920W

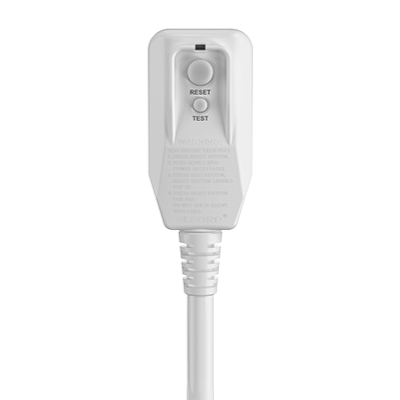

1920W 3 Wire Grounding LCDI Plug for Indoor Use, 5-20P

1920W 3 Wire Grounding LCDI Plug for Indoor Use, 5-20P

Add to list
  • Features
  • Download
    • These are power supply cords provided with Leakage Current Detection and lnterruption (LCDI). They consist of a length of shielded flexible cord with no termination on the load end and an LCDI attachment plug on the line end.
    • These LCDIs are intended to trip if the nominal leakage between the cord shield and either load conductor exceeds a predetermined value. This is intended to reduce the possibility of a fire in the load side shielded cord.
    • The cord shields are not grounded and they must be considered a shock hazard if they are exposed. They must not be connected to ground or to any exposed metal.
    • This product has been evaluated and determined to be suitable for air conditioner loads in accordance with UL1699.

Technical Parameters

  • Model
    L22520-1920W
  • Standard Color
    White
  • Operating Temperature
    -35℃ to 66℃
  • Certification
    UL/CUL
  • Amperage
    16A
  • Voltage
    120V
  • Wattage
    1920 W
  • Frequency
    60Hz
  • Structure
    Plug-In
  • NEMA
    5-20P
  • Pole & Wire
    2-Pole, 3-Wire
  • Grounding
    Grounding
  • Indicator light
    Yes
  • Trip Level
    <5mA
  • Reset
    Manual Reset
  • Cord Type
    14AWG*3
  • Indoor/Outdoor
    Indoor Use Only
