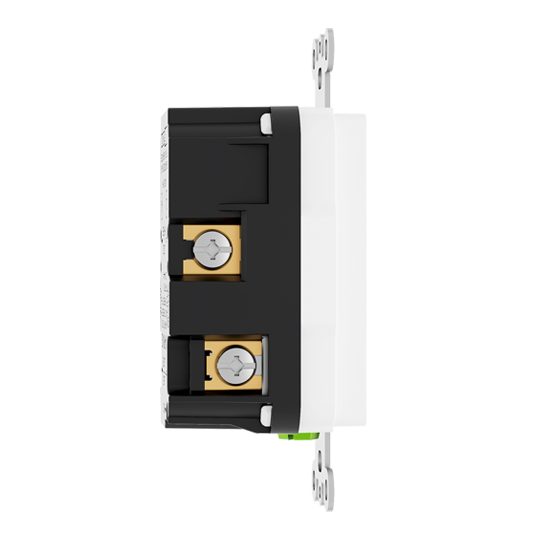

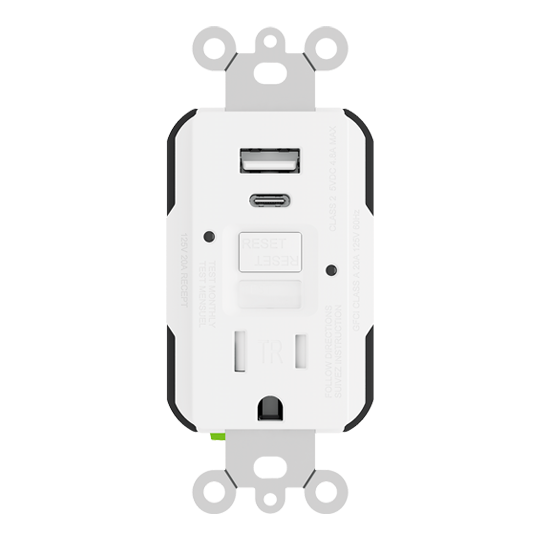

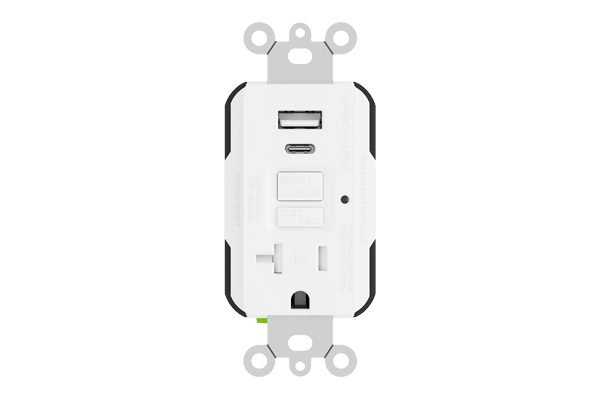

LGR2315ACL1-GFCI Outlets-ELEGRP | Make Our Life Safer

LGR2315ACL1

GFCI Combo with USB Charger

GFCI Combo with USB Charger

Add to list

Features

- Innovative design combining GFCI protection and 24W USB charging in one device, providing a perfect space-saving solution for kitchens and bathrooms.
- Built-in sensor-controlled night light adds visibility and convenience in low-light environments.
- Strictly tested to meet or exceed UL standard requirements, including 6,000+ endurance cycles (twice the UL standard).
- Patented self-test every 5 seconds ensures reliable protection against electrical shock.
- Reverse wiring prevention delivers no power to the receptacle face or downstream if LINE/LOAD is incorrectly wired.
- Reset-disable end-of-life system prevents the GFCI from being reset once it reaches the end of service life.
- Advanced electronics provide superior resistance to electrical surges.
- Dual USB ports (Type-A + Type-C) deliver 24W max total output for fast and convenient charging.
- Built-in smart chip optimizes charging and includes over-voltage, overload, overheat, and short-circuit protection for safer charging.
- Compatible with standard junction boxes, decorator devices, and wall plates.
- Tamper-resistant shutter system helps prevent electrical shock by blocking insertion of unwanted objects.
- Premium thermoplastic construction provides high impact resistance and flame retardance for trusted safety.

Technical Parameters

Model

LGR2315ACL1
Front Cover Color

White, Ivory, Light Almond or custom colors available
Total USB Output

24W(4.8A)Max
GFCl Endurance

≥6,000 times (Twice of UL standard 3,000 times)
Rated Residual Operating Current

4-6mA
GFCl Rated Current

15A
Rated Frequency

60HZ
Rated Voltage

125VAC
Working Temperature

-35℃-+66℃
Standard Compliance

UL943,UL1310,UL498
USB Port Configuration

1 Type A+1 Type C
Description

Basic version
NEMA

5-15R
Safety Certification

UL, CUL Certification
