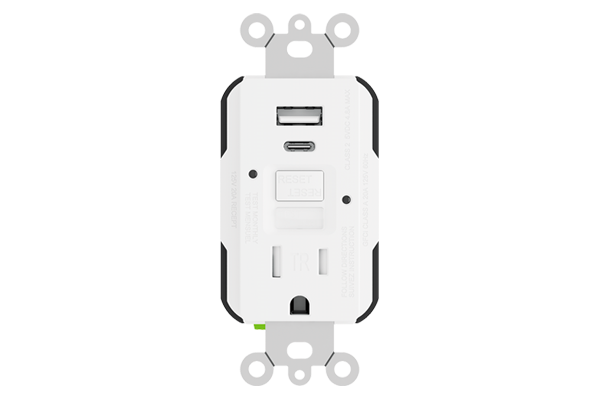

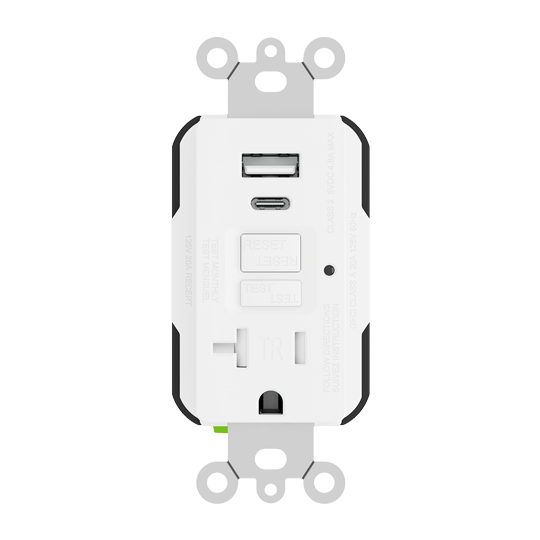

LGR2320ACT1

GFCI Combo with USB Charger

GFCI Combo with USB Charger

Add to list
    • Innovative design combining GFCI protection and 24W USB charging in one device, providing a perfect space-saving solution for kitchens and bathrooms.
    • Strictly tested to meet or exceed UL standard requirements, including 6,000+ endurance cycles (twice the UL standard).
    • Patented self-test every 5 seconds ensures reliable protection against electrical shock.
    • Reverse wiring prevention delivers no power to the receptacle face or downstream if LINE/LOAD is incorrectly wired.
    • Reset-disable end-of-life system prevents the GFCI from being reset once it reaches the end of service life.
    • Advanced electronics provide superior resistance to electrical surges.
    • Dual USB ports (Type-A + Type-C) deliver 24W max total output for fast and convenient charging.
    • Built-in smart chip optimizes charging and includes over-voltage, overload, overheat, and short-circuit protection for safer charging.
    • Compatible with standard junction boxes, decorator devices, and wall plates.

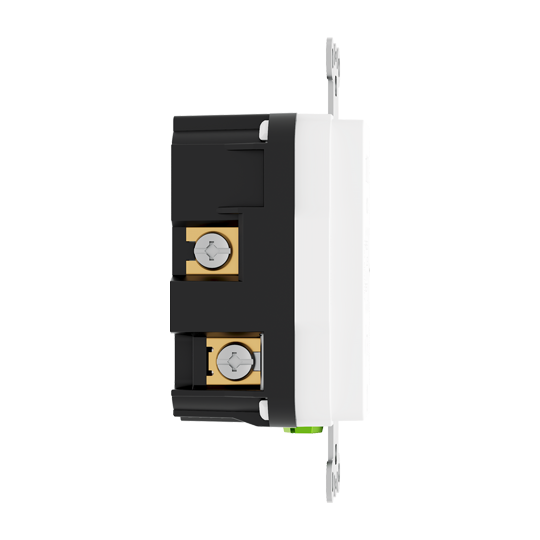

    • Compact profile provides more room for wiring in the junction box and supports 12 or 14 AWG for side and back wiring.
    • Tamper-resistant shutter system helps prevent electrical shock by blocking insertion of unwanted objects.
    • Premium thermoplastic construction provides high impact resistance and flame retardance for trusted safety.

Technical Parameters

  • Model
    LGR2320ACT1
  • Back Cover Color
    Black
  • Front Cover Color
    White,Ivory,Light Aimond or custom colors available
  • USB Port Configuration
    1 Type A+ 1 Type C(Optional)
  • Total USB Output
    24W (4.8A)Max
  • Output Receptacle
    5-20R(Optional)
  • GFCl Endurance
    ≥6,000 times (Twice of UL standard 3,000 times)
  • Rated Residual Operating Current
    4-6mA
  • GFCl Rated Current
    20A
  • Rated Frequency
    60HZ
  • Rated Voltage
    125VAC
  • Working Temperature
    -35℃-+66℃
  • Standard Compliance
    UL943,UL1310,UL498
  • Safety Certification
    UL, CUL Certification
