G1915A
15 Amp Duplex GFCI Outlet, Self-Test with LED Light, Residential Grade
- Features
- Download
-
- Innovative Dual Protection System: Twin solenoid and double Silicon Controlled Rectifier (SCR) ensure an always-on GFCI protection to ground fault.
- Ultra-Compact Design: Leave more room for wiring in an electric box.
- Self-Test Function: Automatically conducts a self-test every 5 seconds, ensuring it is always ready to provide protection.
- Tamper-Resistant: Automatic shutter system prevents young children from inserting unwanted objects into the outlets.
- Durable and Long Service Life: Withstands higher voltage surge than UL943 requirements.
-
Easy to Know it's End-of-life: Repeatedly trips when RESET is attempted.
Does not permit power to the load with an audible "clicking" sound.
Denial of power to the load (trip with the inability to RESET). - Green LED Indicator: Know the GFCI working status at a simple glimpse.
- High Impact Resistant Material: Thermoplastic material and rational structure design ensure superior strength and durability.
-
Technical Parameters
-
ModelG1915A
-
Standard ColorWhite/Ivory/Light Almond/Black/Gray/Brown
-
Operating Temperature-35℃ to 66℃
-
Product Size(HxWxD)103x43x38mm
-
CertificationUL/CUL
-
Amperage15A
-
Voltage125V
-
GradeResidential
-
FinishMatte
-
StructureDecorative
-
NEMA5-15R
-
Pole & Wire2-Pole, 3-Wire
-
GroundingGrounding
-
Tamper ResistantNo
-
Weather ResistantNo
-

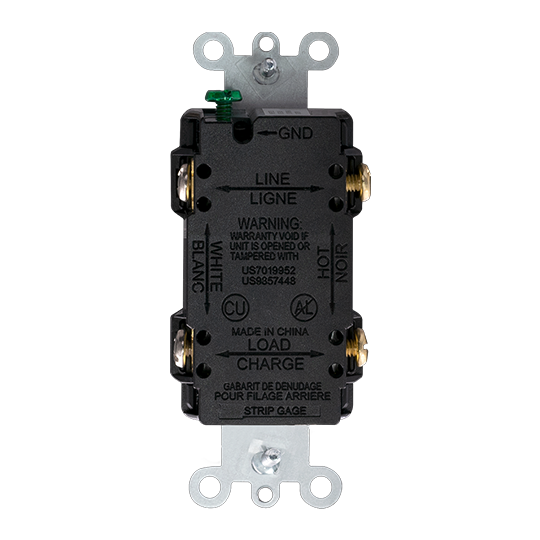

Wiring MethodSide Wire & Back Wire
-
Wiring Accom.#12-#14AWG Copper Wire
-
Indicator lightYES
-
Trip Level4mA~6mA
-
Indoor/OutdoorIndoor Use Only
