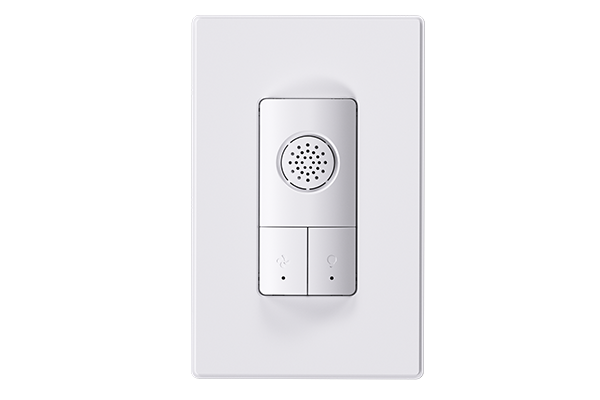

EKA25B
Humidity Sensor and Fan Control Switch
Humidity Sensor and Fan Control Switch
Add to list
-
- All-in-One Fan & Light Control：Replaces a standard single-pole switch to control a ventilation fan, a fan/light combo, or independent fan and lighting circuits—perfect for bathrooms, laundry rooms, and utility areas.
- Broad Load Compatibility: Supports ventilation fans up to 1/4 HP and works reliably with LED, CFL, incandescent, halogen, MLV, and ELV lighting loads.
- Precision Humidity Sensing: Features a digital humidity sensor with microprocessor control for accurate moisture , minimizing false triggers and improving daily comfort and air quality.
- Multiple Operating Modes: Bath fan mode, humidistat mode, and air cycle mode provide flexible ventilation options tailored to different room conditions.
- Tool-Free Setup: All settings can be adjusted directly from the built-in toggle—no wall-plate removal or tools required.
- Simplified Installation with Test Mode: A dedicated test mode helps verify sensor placement and ensures correct calibration during installation.
- UL & Title 24 Compliant：Meets UL 60730, C22.2 No. 60730, ASHRAE 62.2, and supports compliance with California Title 24 (2019 & 2022) and CALGreen Part II indoor air quality standards.
- Ground Connection Required: Requires an earth ground connection for safe, reliable, and compliant operation.
Technical Parameters
-
ModelEKA25B
-
Automatic OFFYes
-
Automatic ONYes
-
OptionSingle Pole
-
Load Capacity1/4HP Fan
-
Wiring MethodGROUND LINE REQUIRED
-
Rating120/277VAC 60HZ
