EKA23

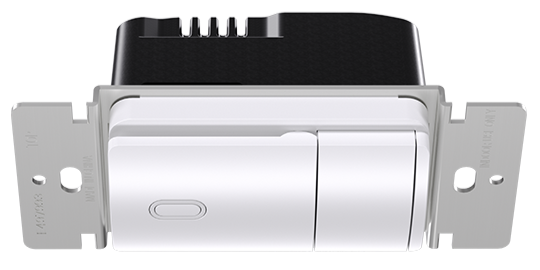

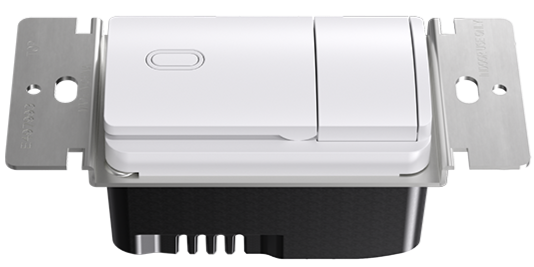

Occupancy Sensor, Automatic ON Automatic OFF
Occupancy Sensor, Automatic ON Automatic OFF
Add to list
-
- Built-in Passive Infrared (PIR) sensor automatically turns lights ON when you enter and OFF when the room is vacant, making it ideal for high-traffic or hands-busy areas.
- Intelligent ambient light detection prevents lights from turning ON when there is enough natural daylight, reducing unnecessary energy use.
- A wide 120° detection angle covers up to 900 sq. ft. of major motion area for reliable and responsive sensing in large spaces.
- Auto-ON and Manual-ON modes allow you to choose between fully automatic operation or manual activation based on user preference and installation needs.
- An adjustable delay-OFF timer automatically turns lights OFF after 1, 5, 15, or 30 minutes, depending on your selected setting.
- Customizable sensitivity and ambient light levels (Low / High / Off / Custom) let you fine-tune performance for different rooms.
- Wide load compatibility supports LED, CFL, incandescent, halogen, magnetic low-voltage, electronic low-voltage, and small motor loads.
- All programming can be completed without removing the wallplate, simplifying installation and adjustments.
- A user-friendly installation design with leaded terminals and compatibility with screwless wallplates provides a cleaner, modern appearance.
- UL Listed and Title 24 compliant construction ensures tested safety, energy efficiency, and adherence to California residential sensor requirements.
Technical Parameters
-
ModelEKA23
-
CertfiedUL, CUL Certification
-
Automatic OFFYes
-
Automatic ONYes
-
OptionSingle Pole
-
LoadCapacityIncandescent 500w LED/CFL 200W
-
DescriptionOccupancy PIR Sensing Switch
-
Wiring MethodGrounding Line Required
-
Frequency60Hz
-
Voltage120V/277V
