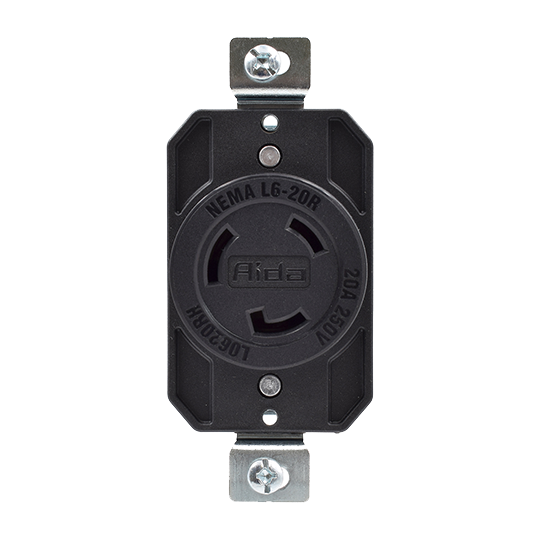

L0620RL
Locking Outlet, 20 Amp 250 Volt L6-20R
Locking Outlet, 20 Amp 250 Volt L6-20R
Add to list
- Features
- Download
-
- High-impact thermoplastic face and back body eliminate cracks, breaks and callbacks.
- Back wire ground clamp for fast and secure wiring.
- Self-grounding clip assures positive ground.
- Push-in quick back wring holes allow faster, easier installation.
- Heavy-duty compact design for easier installation and long-lasting performance.
- All four contact screws and the ground screw are backed-out.
- Self-grounding clip assures positive ground.
- Wrap-around galvanized steel straps.
- Heavy-Duty nylon body and cover for outstanding resistance to impact and harsh chemicals.
- Compact body design allows for adequate wiring room in the wallbox.
- Heavy interior walls provide additional support to ensure contact retention.
- One-piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
Technical Parameters
-
ModelL0620RL
-
Indoor/OutdoorIndoor Use Only
-
Indicator lightNO
-
GroundingGrounding
-
Pole & Wire2-Pole, 3-Wire
-
NEMAL6-20R
-
StructureTwist-Lock
-
GradeCommercial
-
Voltage250V
-
Amperage20A
-
CertificationUL/CUL
-
Product Size(HxWxD)94x43x31mm
-
Standard ColorBlack
